Sky & environments

Change the sky of the scene

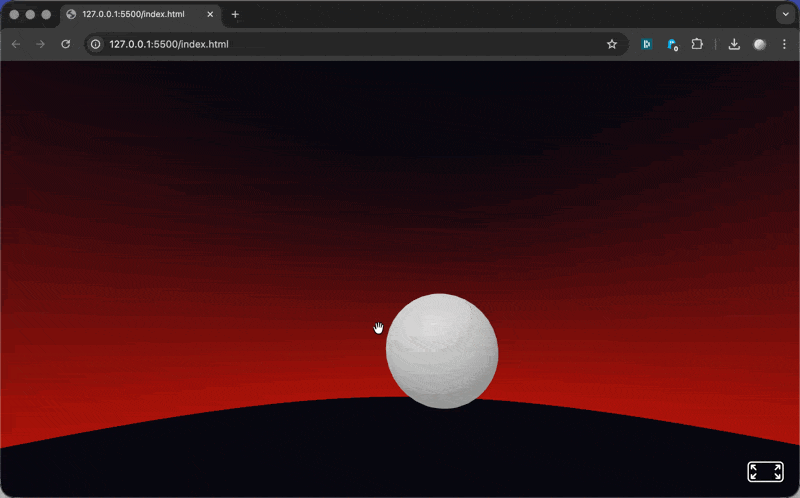

video capture
Example of a modified sky

Create the file skyGradient.js and add the code:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
/* global AFRAME */
AFRAME.registerShader('skyGradient', {
  schema: {
    colorTop: { type: 'color', default: 'black', is: 'uniform' },
    colorBottom: { type: 'color', default: 'red', is: 'uniform' }
  },

  vertexShader: [
    'varying vec3 vWorldPosition;',

    'void main() {',

      'vec4 worldPosition = modelMatrix * vec4( position, 1.0 );',
      'vWorldPosition = worldPosition.xyz;',

      'gl_Position = projectionMatrix * modelViewMatrix * vec4( position, 1.0 );',

    '}'

  ].join('\n'),

  fragmentShader: [
    'uniform vec3 colorTop;',
    'uniform vec3 colorBottom;',

    'varying vec3 vWorldPosition;',

    'void main()',

    '{',
      'vec3 pointOnSphere = normalize(vWorldPosition.xyz);',
      'float f = 1.0;',
      'if(pointOnSphere.y > - 0.2){',

        'f = sin(pointOnSphere.y * 2.0);',

      '}',
      'gl_FragColor = vec4(mix(colorBottom,colorTop, f ), 1.0);',

    '}'
  ].join('\n')
});

Then add the file and environment to index.html.

1
2
3
4
5
6
7
8
9
<!-- dans le head -->
<script src="/skyGradient.js"></script>

<!-- dans le body -->
<a-entity
  id="sky"
  geometry="primitive: sphere; radius: 65;"
  material="shader: skyGradient; colorTop: #353449; colorBottom: #BC483E; side: back"
></a-entity>
Full code for the exemple:

Code
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
<html>
    <head>
        <script src="https://aframe.io/releases/1.7.1/aframe.min.js"></script>
        <script src="/skyGradient.js"></script>
    </head>
    <body>
        <a-scene>
            <a-entity id="sky" geometry="primitive: sphere; radius: 65;"
                material="shader: skyGradient; colorTop: #353449; colorBottom: #BC483E; side: back"><a-entity>
                    <a-sphere position="0 1.25 -5" radius="1.25" color="#CCCCCC"></a-sphere>
        </a-scene>
    </body>
</html>

Add a terrain

  • Be careful in Blender to position the terrain correctly in the center of the scene.

  • Blender screen capture

To add a terrain in .glb format to the A-Frame scene:

  • Create the ground.js file:
Code
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
/* global AFRAME, THREE */

/**
* Loads and setup ground model.
*/
AFRAME.registerComponent('ground', {
init: function () {
    this.onModelLoaded = this.onModelLoaded.bind(this);
    this.el.addEventListener('model-loaded', this.onModelLoaded);
    this.el.setAttribute('gltf-model', '#ground');
},
onModelLoaded: function (evt) {
    var model = evt.detail.model;
    model.children.forEach(function (value) {
    value.receiveShadow = true;
    value.material.flatShading = THREE.FlatShading;
    });
}
});
  • Link the file in index.html:
Code
1
2
<!-- dans le head -->
<script src="/ground.js"></script>
  • Add the .glb file to index.html
Code
1
2
3
4
5
6
7
8
<a-assets>
<a-asset-item
    id="ground"
    src="https://cdn.glitch.global/daa3d4b3-f117-42b3-904f-3f14e4a78ba9/ground2.glb?v=1746539192732"><!-- changer le lien vers le fichier glb -->
    </a-asset-item>
</a-assets>

<a-entity ground></a-entity>

Alternative solution for using pre-designed environments

The aframe-environment-component library is very useful for using several very different terrains in an A-frame project.

video
Image: a-frame-environment-component repository

To use aframe-environment-component:

  • Use version 1.7.0 of A-Frame
  • Then include the file: <script src="https://unpkg.com/aframe-environment-component@1.5.x/dist/aframe-environment-component.min.js"></script>
  • Finally, add the environment to the scene: <a-entity environment="preset: <name of the preset>"></a-entity>

List of environments: none, default, contact, egypt, checkerboard, forest, goaland, yavapai, goldmine, threetowers, poison, arches, tron, japan, dream, volcano, starry, osiris, moon

For example, with the forest environment, it gives: <a-entity environment="preset: forest"></a-entity>
