Add images & 3D models

Add an image

The image is displayed on a flat plane in the scene.

Link in the A-Frame doc

screen capture

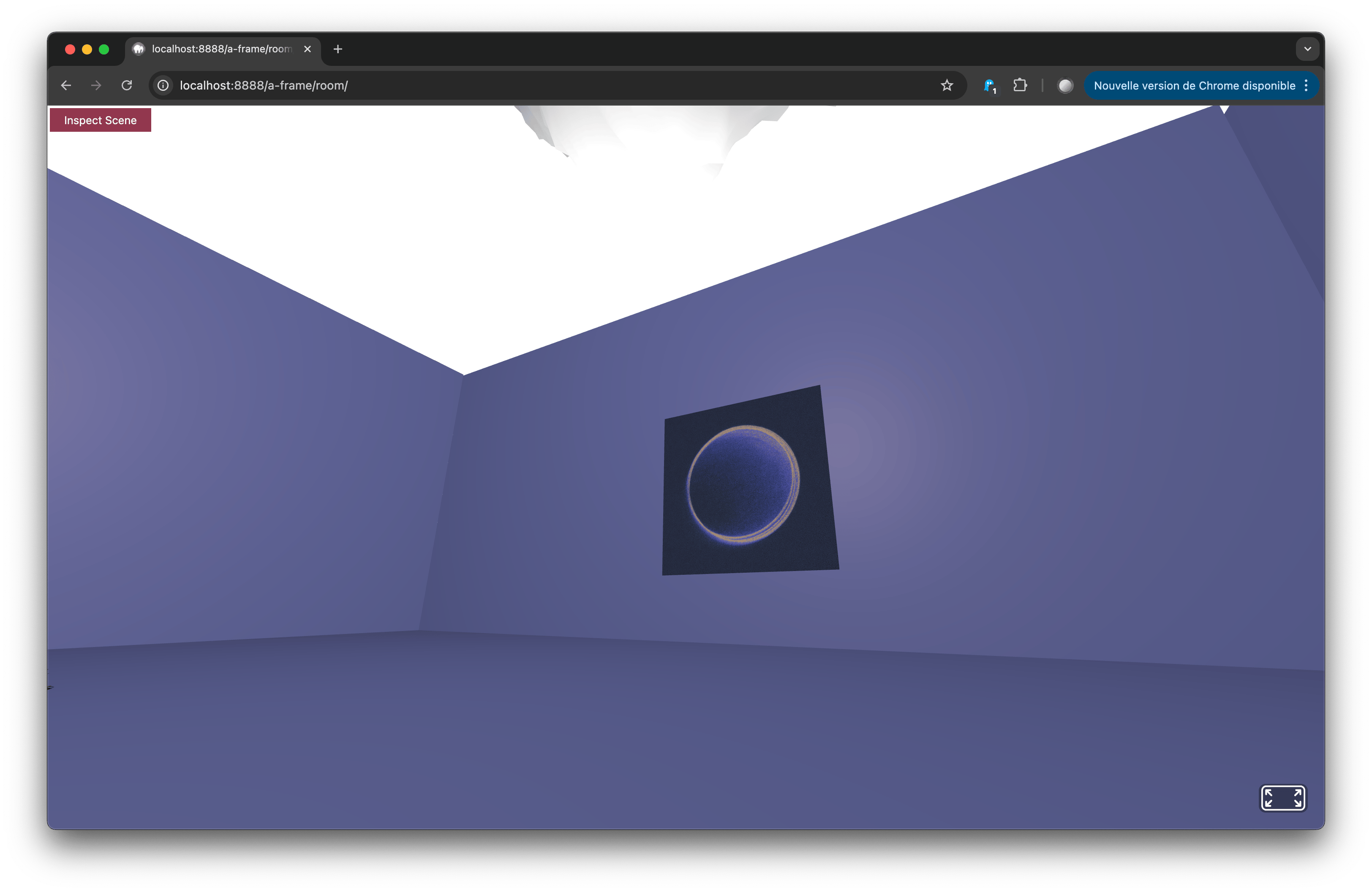

Example of a flat plane display on the wall
Code
1
2
3
4
<a-assets>
    <img id="my-image" src="image.png">
</a-assets>
<a-image src="#my-image"></a-image>

Add a 3D model

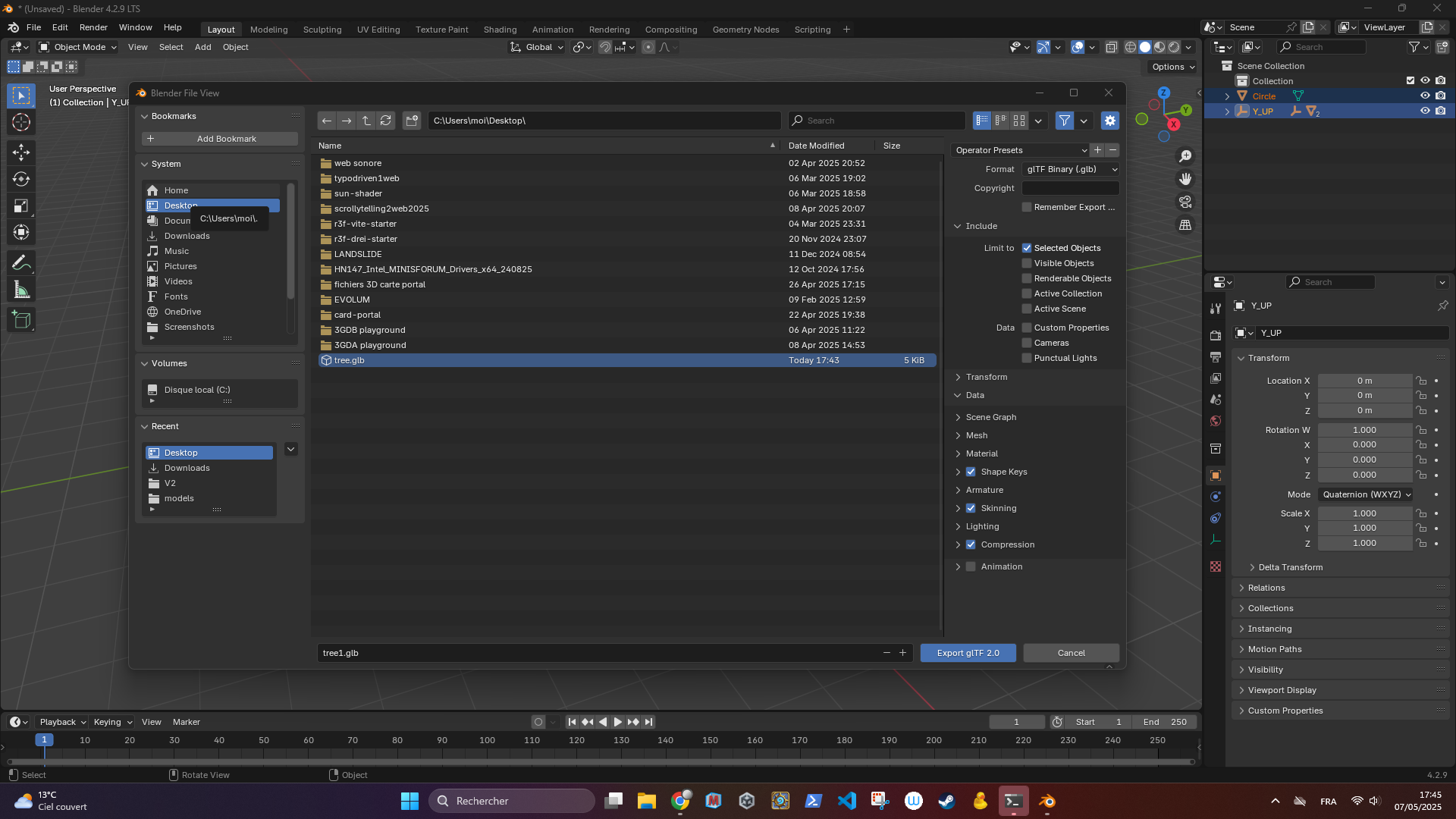

Prepare a 3D model in .glb format using Blender.

screen capture

Download a 3D model in glb format

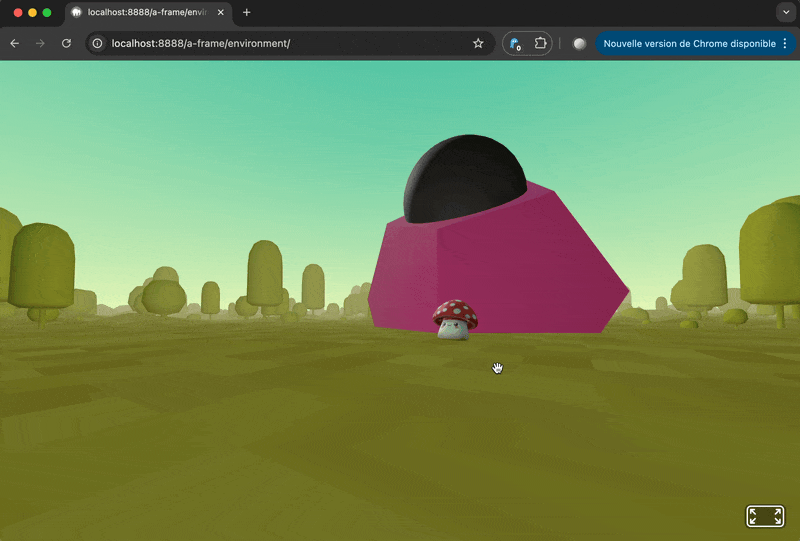

You must use MAMP (locally) to be able to load the 3D file into the page (Cross-Origin Resource Sharing - CORS).

video capture

Code
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
<!DOCTYPE html>
<html>
<head>
    <meta charset="utf-8">
    <title>3D Model (glTF)</title>
    <meta name="description" content="3D Model (glTF) — A-Frame">
        <script src="https://aframe.io/releases/1.7.1/aframe.min.js"></script>
</head>
<body>
    <a-scene background="color: #ECECEC">
    <a-assets>
        <a-asset-item id="tree" src="/tree.glb"></a-asset-item><!-- changer le lien vers le fichier glb -->
    </a-assets>

    <a-gltf-model src="#tree" rotation="0 45 0"></a-gltf-model>
    <a-entity position="0 0 4"><!-- permet déplacer l'objet 3D sur les axes X,Y,Z -->
        <a-camera></a-camera>
    </a-entity>
    </a-scene>
</body>
</html>
