Animating a 3D object in the scene

Link to details of the animation component in the A-Frame documentation.

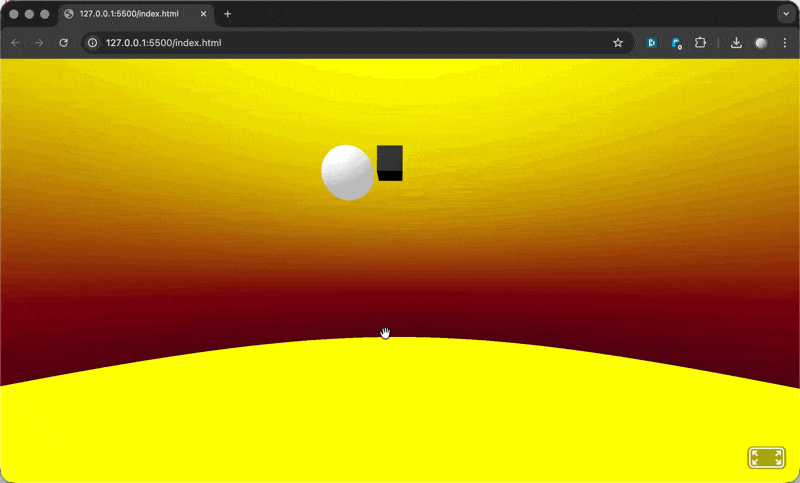

screen capture
Moving some primitives

Move a cube

1
<a-box position="-1 1.6 -5" animation="property: position; to: 1 8 -10; dur: 2000; easing: linear; loop: true" color="tomato"></a-box>

Animation settings details:

1
2
3
4
5
6
7
8
  animation="
    property: position;
    from: -1 42 0;      <!-- position de départ -->
    to:    1 42 0;      <!-- position d’arrivée -->
    dur:   3000;        <!-- durée aller ou retour -->
    dir:   alternate;   <!-- jouer aller puis retour -->
    loop:  true;        <!-- répéter indéfiniment -->
    easing: easeInOutSine;" <!-- courbe d'animation -->

Full code for the exemple:

Code
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
  <html>
      <head>
          <script src="https://aframe.io/releases/1.7.1/aframe.min.js"></script>
          <script src="/skyGradient.js"></script>
      </head>
      <body>
          <a-scene>
              <a-entity id="sky" geometry="primitive: sphere; radius: 65;"
                  material="shader: skyGradient; colorTop: yellow; colorBottom: #BC483E; side: back"><a-entity>
                      <a-box position="-1 1.6 -5"
                          animation="property: position; to: 1 8 -10; dur: 2000; dir: alternate;  easing: linear; loop: true"
                          color="black"></a-box>
                      <a-sphere position="-5 1.6 -5"
                          animation="property: position; to: 1 8 -10; dur: 4000; dir: alternate;  easing: linear; loop: true"
                          color="white"></a-sphere>
          </a-scene>
      </body>
  </html>
